Expanding Cylinder Moulds

The Woollard & Henry Expanding Cylinder Mould is the leader in the field of security paper equipment, with the largest expansion range on the market, and the fastest diameter changes.


Woollard & Henry offers the best Expanding Cylinder Moulds available. Our ECM was developed in conjunction with experts from the banknote paper industry and are designed to the customers’ specification.

Features and benefits:
      • The only ECM with an expansion range of 220mm over the diameter
      • Grid Plate change time of less than one hour achievable
      • Each Grid Plate up to 70mm expansion
      • The expansion range can be achieved on one central body
      • Accuracies of less than 0.2mm deflection on the diameter
      • Machine direction top fins reducing the paddling effect
      • Custom design to suit your specific machine and needs
      • Outstanding craftsmanship and services.


Woollard & Henry also offers other specialist systems to complement our bespoke ECMs in the likes of Vat Inserts, an ECM cleaning bath system, a cover change trolley, and a cover fitting cantilever system

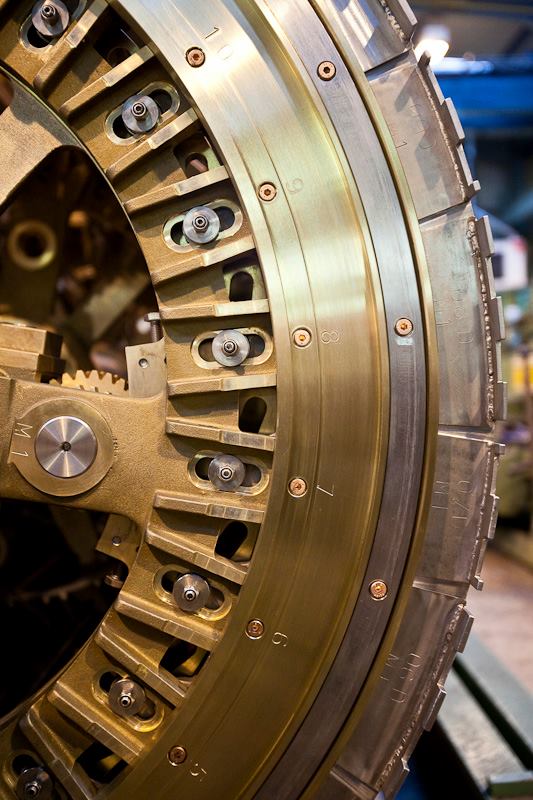

Expanding Cylinder mould

Get more information on how Expanding Cylinder Moulds can improve your production
